Metal High Torque DC Worm Gear Motors 12 Volt 150 RPM ROSH Approved

Categories	DC Worm Gear Motors
Brand Name:	ASLONG
Model Number:	JGY-370
Certification:	CE
Place of Origin:	China
MOQ:	2 Pieces
Price:	Negotiation
Payment Terms:	T/T, Western Union, MoneyGram
Supply Ability:	10000pcs/Week
Delivery Time:	5-8working days
Packaging Details:	on-the-spot foaming package 13108 201510 423216 423232
Usage:	Home Appliance
Protect feature:	Totally Enclosed
Product name:	dc worm geared motors
Speed(rpm):	6-150rpm
Voltage(v):	6V/12V/24V
Size of Gearbox:	46*32(mm)
Torque:	0.2-26.5kg.cm

Contact Now

Add to Cart

Company Info.

Shenzhen Jinshunlaite Motor Co., Ltd.

View Contact Details

Product List

Haven't found right suppliers
Our buyer assistants can help you find the most suitable, 100% reliable suppliers from China.
And this service is free of charge.
we have buyer assistants who speak English, French, Spanish......and we are ready to help you anytime!

Submit Buying Request

Product Details
Company Profile

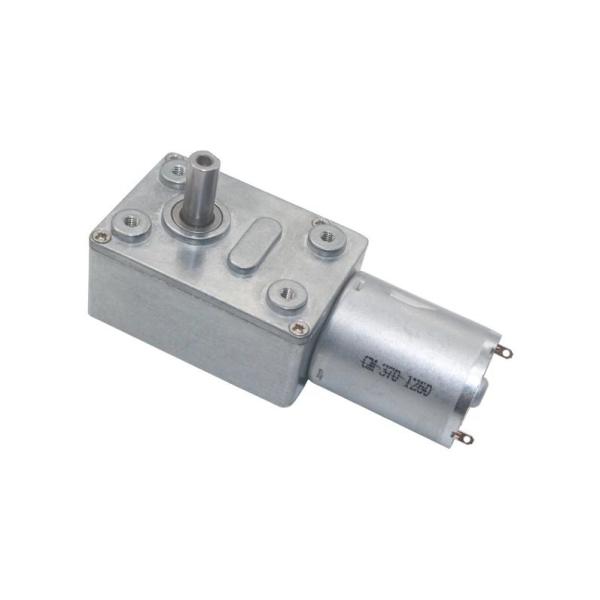

Metal High Torque DC Worm Gear Motors 12 Volt 150 RPM ROSH Approved

Metal High Torque DC Worm Gear Motors 12 Volt 150 RPM ROSH Approved

DC6V/12V24V Worm Gear Motor,2 to 150 RPM High Torque Electric Power Speed Reduce Turbine Worm Gear Box Motors

Worm gearbox Micro Dc Gear Motor Description:

Now ,you can get our this worm gearbox dc gear motor and other related worm gearbox motors as following:


JGY-370	JGY-395	JGY-385	5840-31ZY

5840-3650	5840-555	JGY-2430	5882-4260

Specifications:

Rated Volt: DC 6v 12V 24V
Speed(No load): 2/6/10/18/23/30/40/90/150 RPM
Max torque:24kg.cm
Main Material:Metal
Weight:160g

Voltage/rpm/shaft can be customized , welcome to consult.

Datasheet:

Rated DC 6V660 testing parameter datasheet
Reduction ratio	40	65	90	150	200	260	340	600	1000
No Load Current(ma)	≤100	≤100	≤100	≤100	≤100	≤100	≤100	≤100	≤100
No Load speed (rpm)	150	90	66	40	30	23	18	10	6
Rated torque(kg.cm)	0.2	0.5	0.7	2	5.3	6.7	9	15.9	26.5
Rated speed (rpm)	120	70	51	30	22	18	15	7.5	4
Rated Current(A)	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6
Stall Torque (kg.cm)	0.9	1.6	2	7.5	10	13	18	30	45
Stall Current(A)	3.3	3.3	3.3	3.3	3.3	3.3	3.3	3.3	3.3

Rated DC 12V1260 testing parameter datasheet
Reduction ratio	40	65	90	150	200	260	340	600	1000
No Load Current(ma)	≤60	≤60	≤60	≤60	≤60	≤60	≤60	≤60	≤60
No Load speed (rpm)	150	90	66	40	30	23	18	10	6
Rated torque(kg.cm)	0.2	0.5	0.7	2	5.3	6.7	9	15.9	26.5
Rated speed (rpm)	120	70	51	30	22	18	15	7.5	4
Rated Current(A)	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6	≤0.6
Stall Torque (kg.cm)	0.9	1.6	2	7.5	10	13	18	30	45
Stall Current(A)	1.7	1.7	1.7	1.7	1.7	1.7	1.7	1.7	1.7

Rated DC 24V2460 testing parameter datasheet
Reduction ratio	40	65	90	150	200	260	340	600	1000
No Load Current(ma)	≤40	≤40	≤40	≤40	≤40	≤40	≤40	≤40	≤40
No Load speed (rpm)	150	90	66	40	30	23	18	10	6
Rated torque(kg.cm)	0.2	0.5	0.7	2	5.3	6.7	9	15.9	26.5
Rated speed (rpm)	120	70	51	30	22	18	15	7.5	4
Rated Current(A)	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3	≤0.3
Stall Torque (kg.cm)	0.9	1.6	2	7.5	10	13	18	30	45
Stall Current(A)	0.85	0.85	0.85	0.85	0.85	0.85	0.85	0.85	0.85

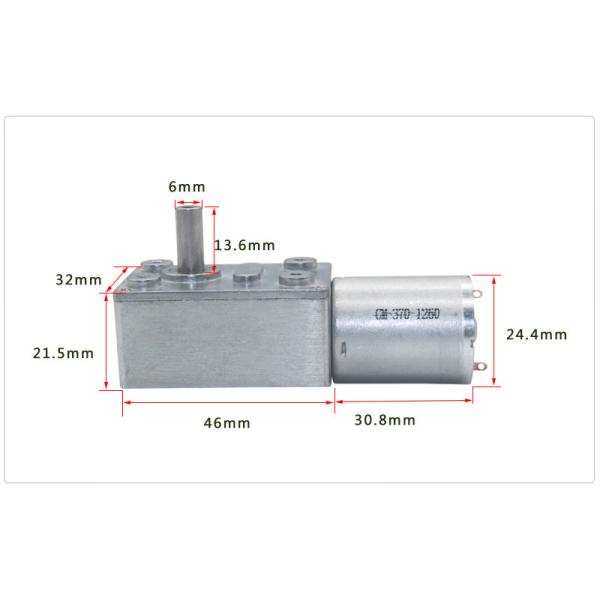

Dimension:

FAQ
1. who are we?
We are based in Guangdong, China, start from 2005,sell to North America(30.00%),Domestic Market(15.00%),Western Europe(10.00%),Eastern Europe(10.00%),Northern Europe(6.00%),Southern Europe(5.00%),Southeast Asia(5.00%),South America(5.00%),Oceania(5.00%),South Asia(4.00%),Africa(3.00%),Eastern Asia(2.00%). There are total about 101-200 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
Gear Motor,DC Motor,Brushless Motor,Planetary Gear Motor,Worm Gear Motor

4. why should you buy from us not from other suppliers?
Specialized in Micro DC motor, Dc Gearbox motor.We have been in this industry for over 10 years,we have many experinec to provide motors according to customer's requirements.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FCA,Express Delivery；
Accepted Payment Currency:USD,EUR,HKD,CNY;
Accepted Payment Type: T/T,L/C,D/P D/A,Credit Card,PayPal;
Language Spoken:English,Chinese
